MS prognosis and monitoring with AI

How artificial intelligence may support prognosis and monitoring while keeping outcomes, validation and bias in view.

ECTRIMS 2023

A web sketch of the deck’s central idea
Delivered
Event
ECTRIMS 2023
Format
Conference
Source deck
20 slides

From the slides

Deck notes

This ECTRIMS presentation reviewed artificial intelligence for prognosis and monitoring in multiple sclerosis. It connected disease activity and MRI change with lessons from newer multimodal models.

The question

How can AI support useful monitoring without losing sight of clinical outcomes, validation and bias?

Deck outline

  • Disease activity and baseline risk
  • Clinical outcomes for prognosis
  • MRI change as a monitoring signal
  • Lessons from AI in other medical fields

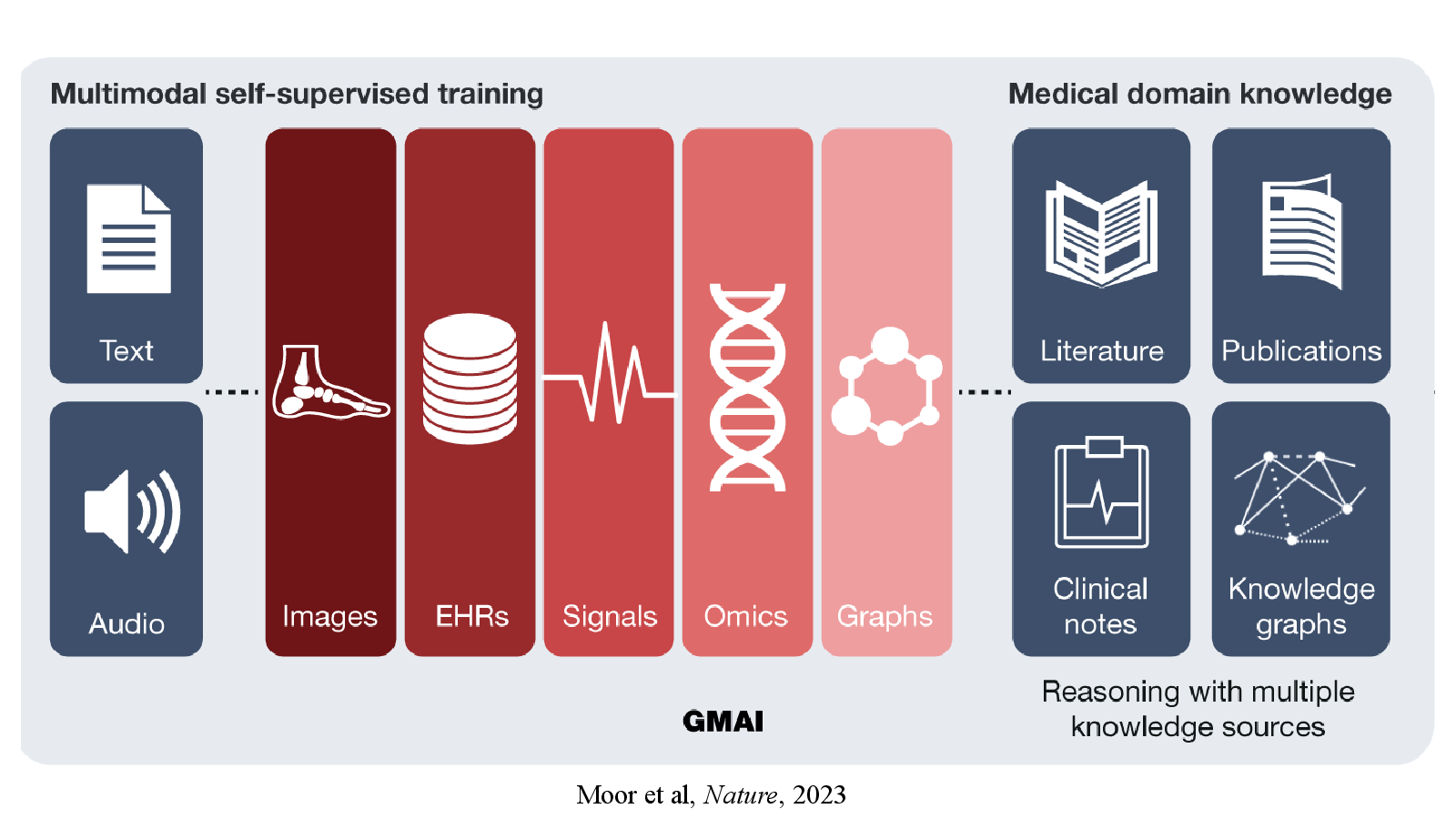

  • Multimodal and generative medical models
  • Bias, evaluation and clinical use

Take-away

AI can broaden what is measured, but a model is only useful when its outcome is clinically meaningful and its performance has been tested for bias.

Original deck

Slide by slide

Read the 20-slide presentation in order, or use the index to jump.

  1. Slide 01

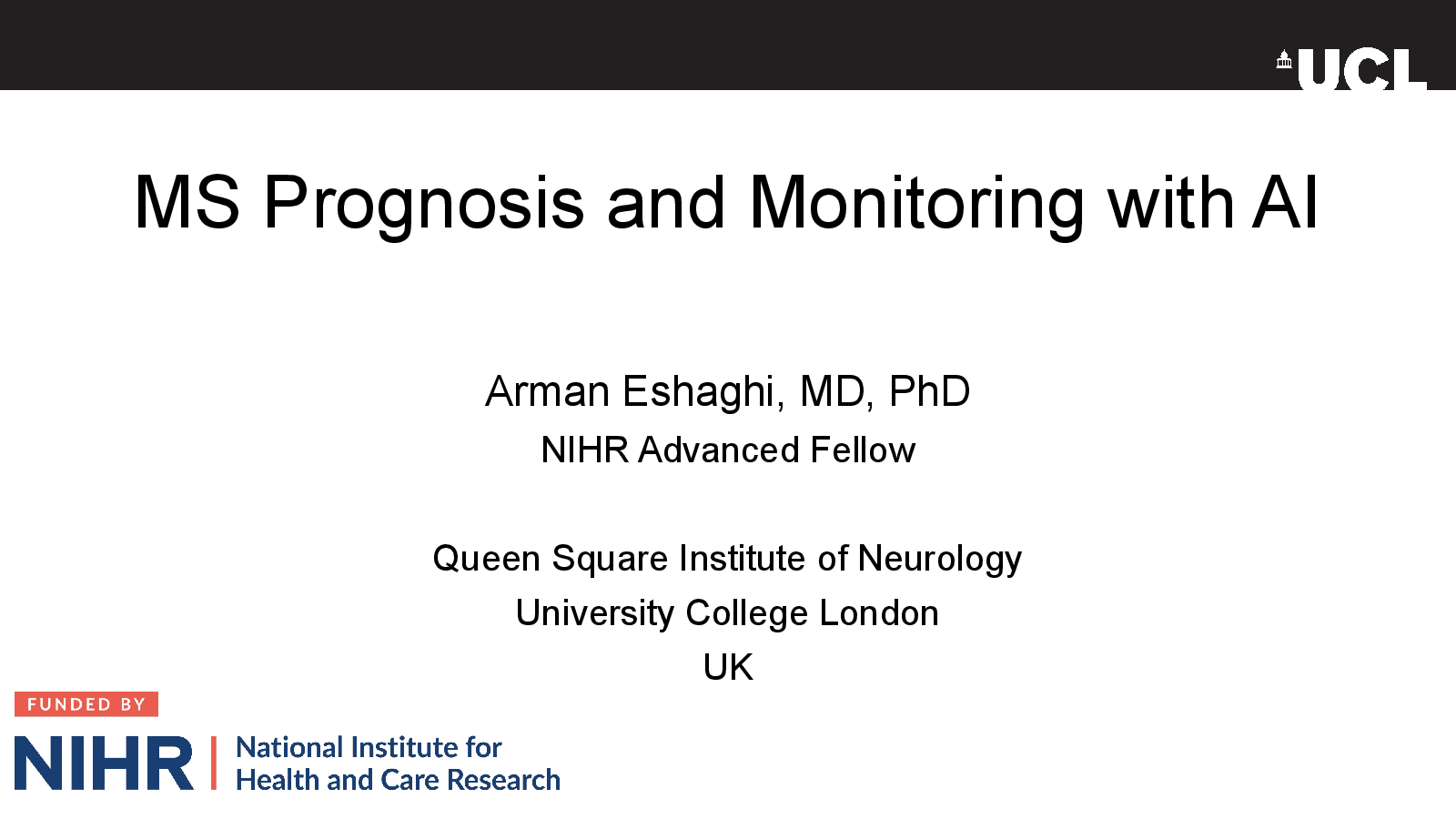

    MS Prognosis and Monitoring with AI

    Slide 1: MS Prognosis and Monitoring with AIOpen full-size slide

    Arman Eshaghi, MD, PhD

    NIHR Advanced Fellow

    Queen Square Institute of Neurology

    University College London

    UK

  2. Slide 02

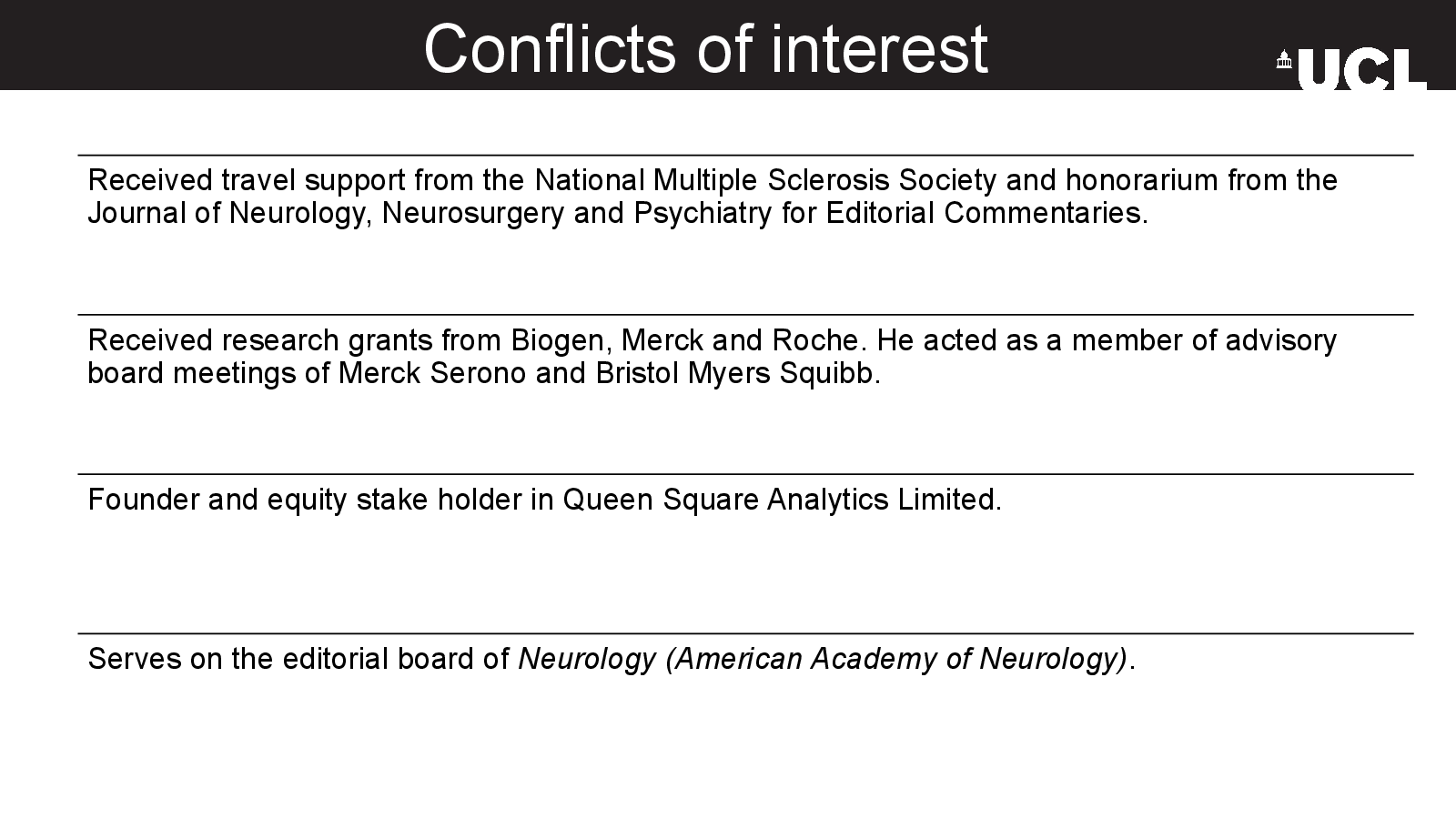

    Conflicts of interest

    Slide 2: Conflicts of interestOpen full-size slide
    • Received travel support from the National Multiple Sclerosis Society and honorarium from the Journal of Neurology, Neurosurgery and Psychiatry for Editorial Commentaries.
    • Received research grants from Biogen, Merck and Roche. He acted as a member of advisory board meetings of Merck Serono and Bristol Myers Squibb.
    • Founder and equity stake holder in Queen Square Analytics Limited.
    • Serves on the editorial board of Neurology (American Academy of Neurology).

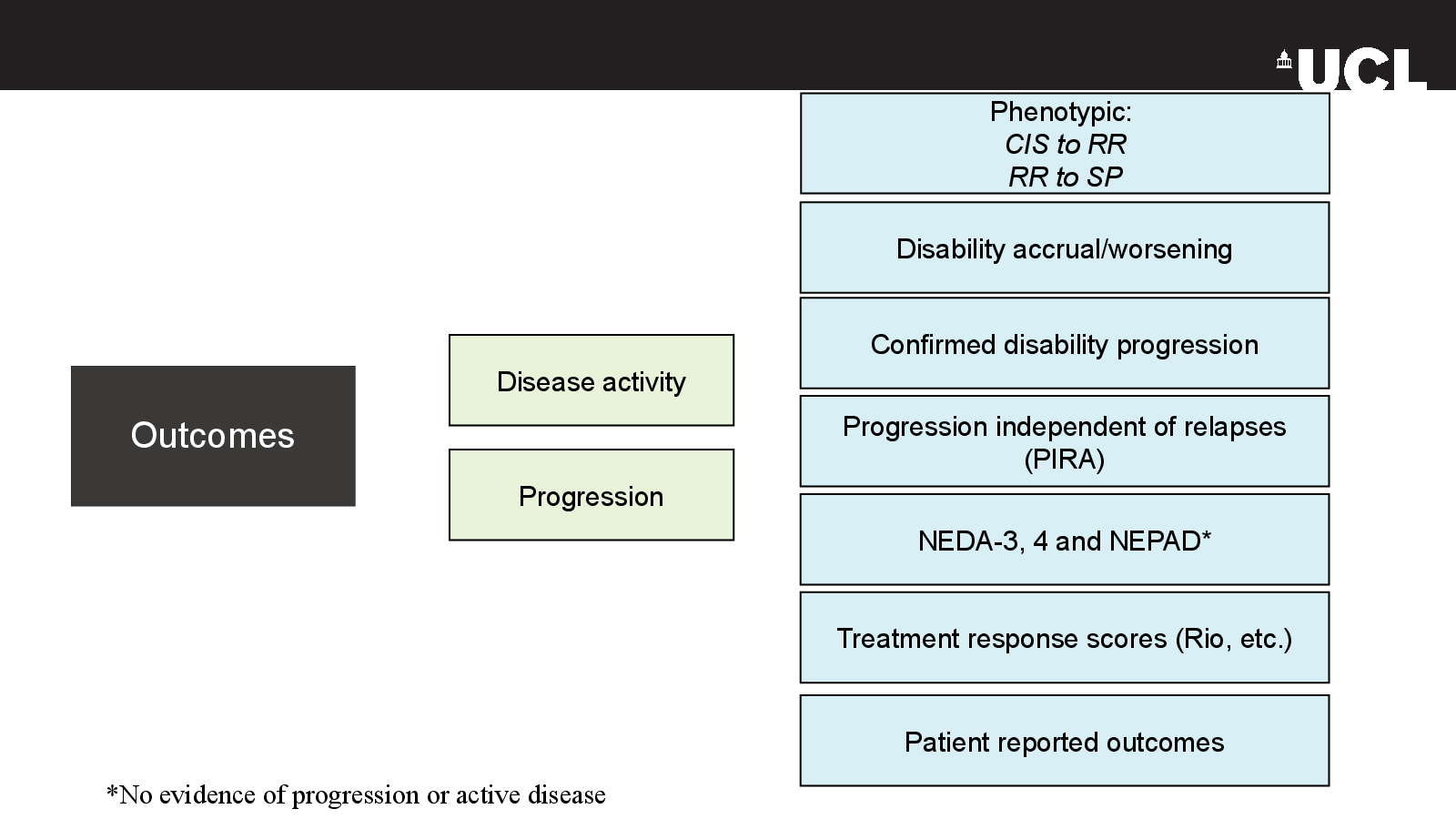

  3. Slide 04

    Outcomes

    Slide 4: OutcomesOpen full-size slide

    Phenotypic:

    CIS to RR

    RR to SP

    Disability accrual/worsening

    Confirmed disability progression

    Disease activity

    Progression independent of relapses

    (PIRA)

    Progression

    NEDA-3, 4 and NEPAD*

    Treatment response scores (Rio, etc.)

    Patient reported outcomes

    *No evidence of progression or active disease

    Speaker notes

    https://www.uptodate.com/contents/indications-for-switching-or-stopping-disease-modifying-therapy-for-multiple-sclerosis

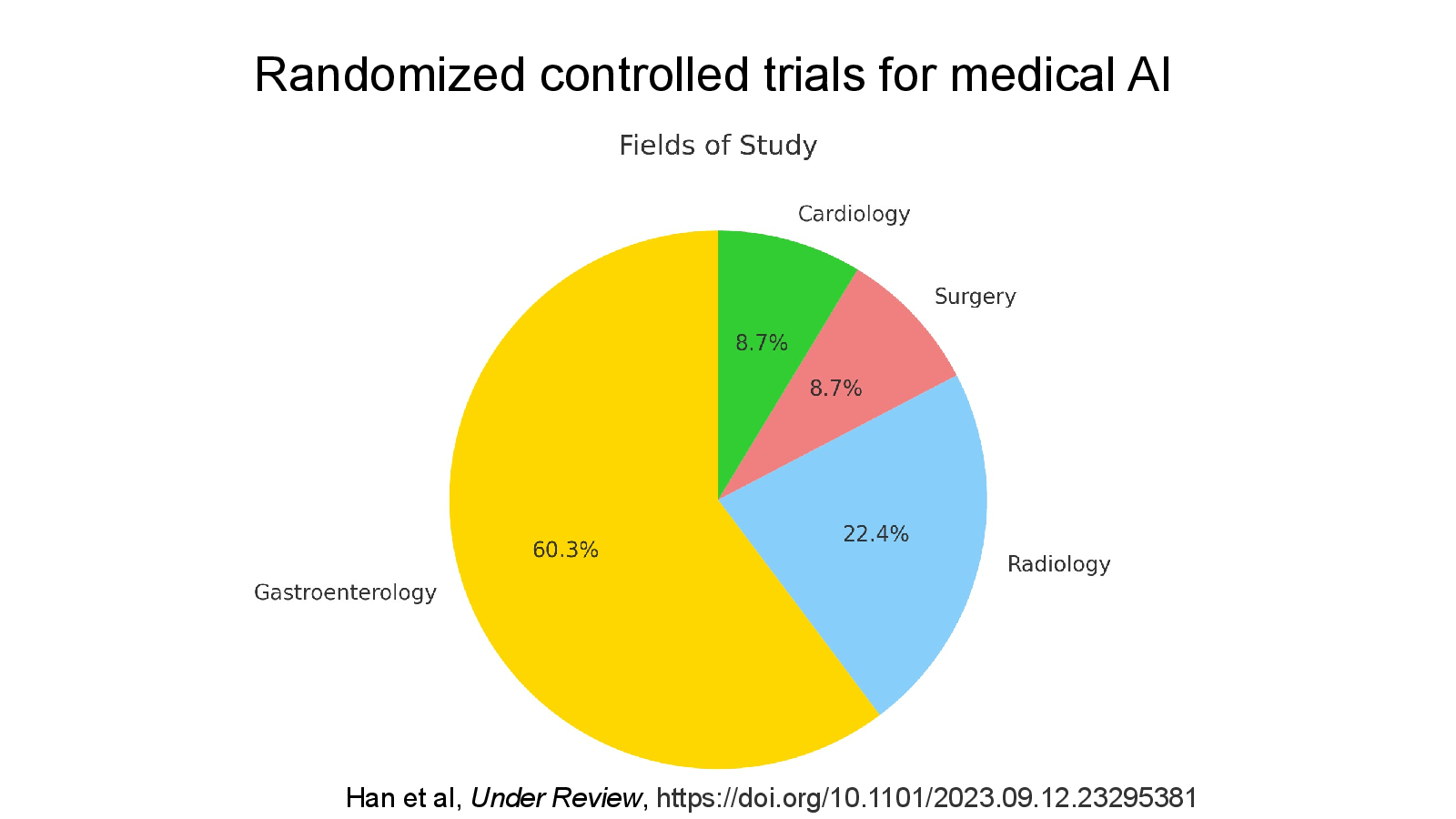

  4. Slide 12

    Han et al, Under Review, https://doi.org/10.1101/2023.09.12.23295381

    Slide 12: Han et al, Under Review, https://doi.org/10.1101/2023.09.12.23295381Open full-size slide

    Randomized controlled trials for medical AI

    Speaker notes

    The paper is a scoping review evaluating the current landscape of randomized controlled trials (RCTs) for artificial intelligence (AI) algorithms used in clinical practice. The authors conducted a systematic search for RCTs published between January 2018 - August 2023, resulting in 84 unique trials included in the analysis. The key findings were:

    • Most trials were in gastroenterology (41.7%), radiology (15.5%), surgery (6%), and cardiology (6%).
    • The US (31%) and China (28.6%) had the most trials, with most being single-center studies.
    • 54.8% of trials had primary endpoints related to diagnostic accuracy. Other endpoints assessed care management, patient outcomes, and clinical decision making.
    • 82.1% of trials reported positive results for their primary endpoint, suggesting AI’s potential to improve healthcare. However, publication bias is likely.
    • Most models were deep learning systems for medical imaging, particularly video analysis. Models for structured data used various techniques like neural networks.
    • Industry developed most models (56%), followed by academia (39.3%). Models were commonly evaluated in an assistive setup with clinicians.

    Page 2: Key implications and limitations:

    • Need for more multi-center and international trials to ensure generalizability of models across diverse populations and settings.
    • Focus has been on technical performance, but impact on patient outcomes needs more assessment through endpoints like survival, symptoms, need for treatment.
    • High reported success rate indicates promise of AI but is likely inflated by publication bias and lack of comprehensive, multi-center studies.
    • Homogeneity of studies/models indicates immaturity of the field. More variety needed in research groups, interventions, outcomes assessed.
    • Understanding of AI’s limitations requires focus on unsuccessful trials and models.

    In conclusion, the review reveals expanding interest in clinical AI trials across many fields and geographies. While most find positive results, publication bias is likely. More comprehensive research is essential to fully understand AI’s impact and limitations in healthcare. Key gaps include multi-center trials, clinically meaningful endpoints, and unsuccessful models.

    References

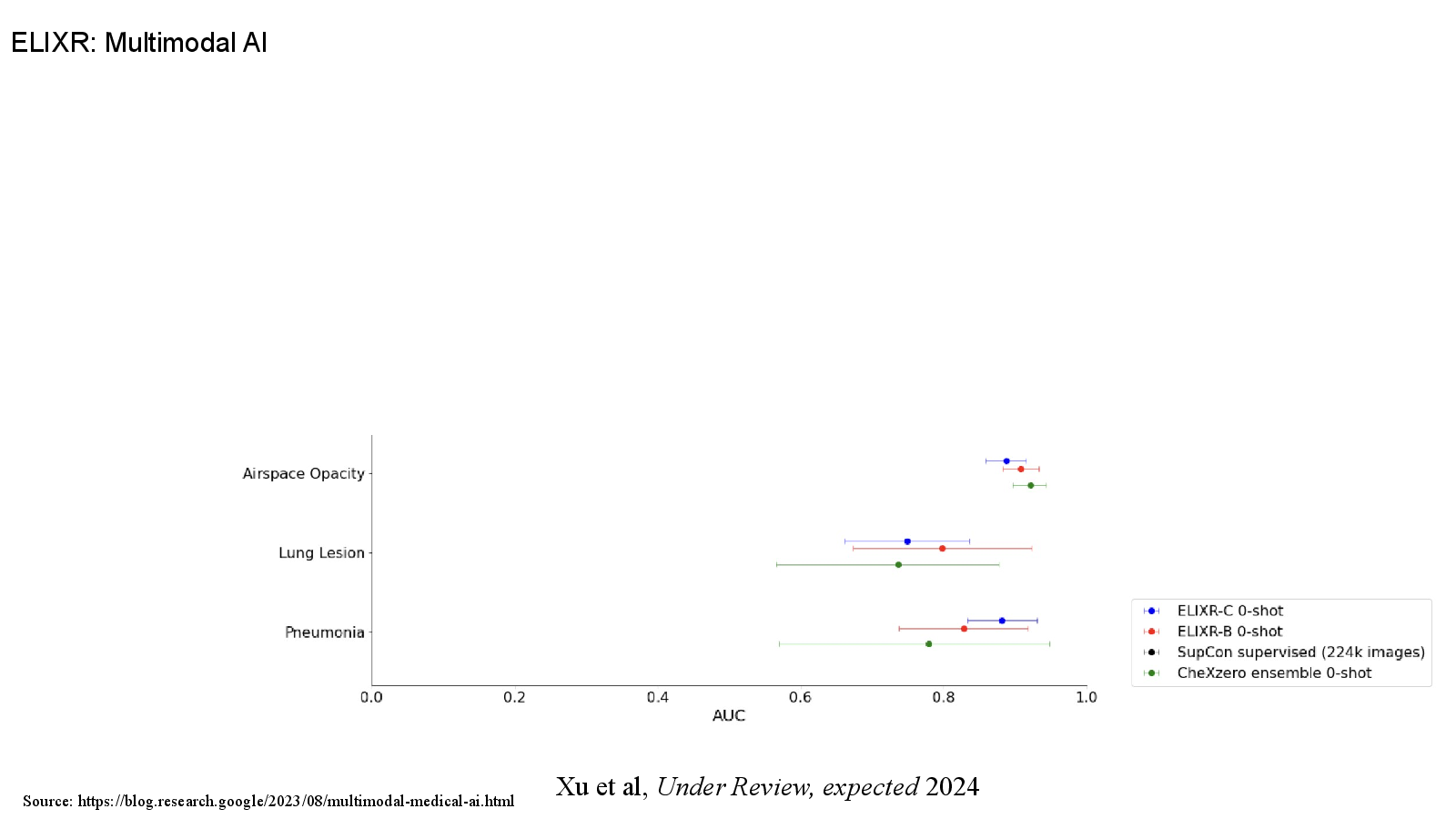

  5. Slide 16

    Source: https://blog.research.google/2023/08/multimodal-medical-ai.html

    Slide 16: Source: https://blog.research.google/2023/08/multimodal-medical-ai.htmlOpen full-size slide

    ELIXR: Multimodal AI

    Xu et al, Under Review, expected 2024

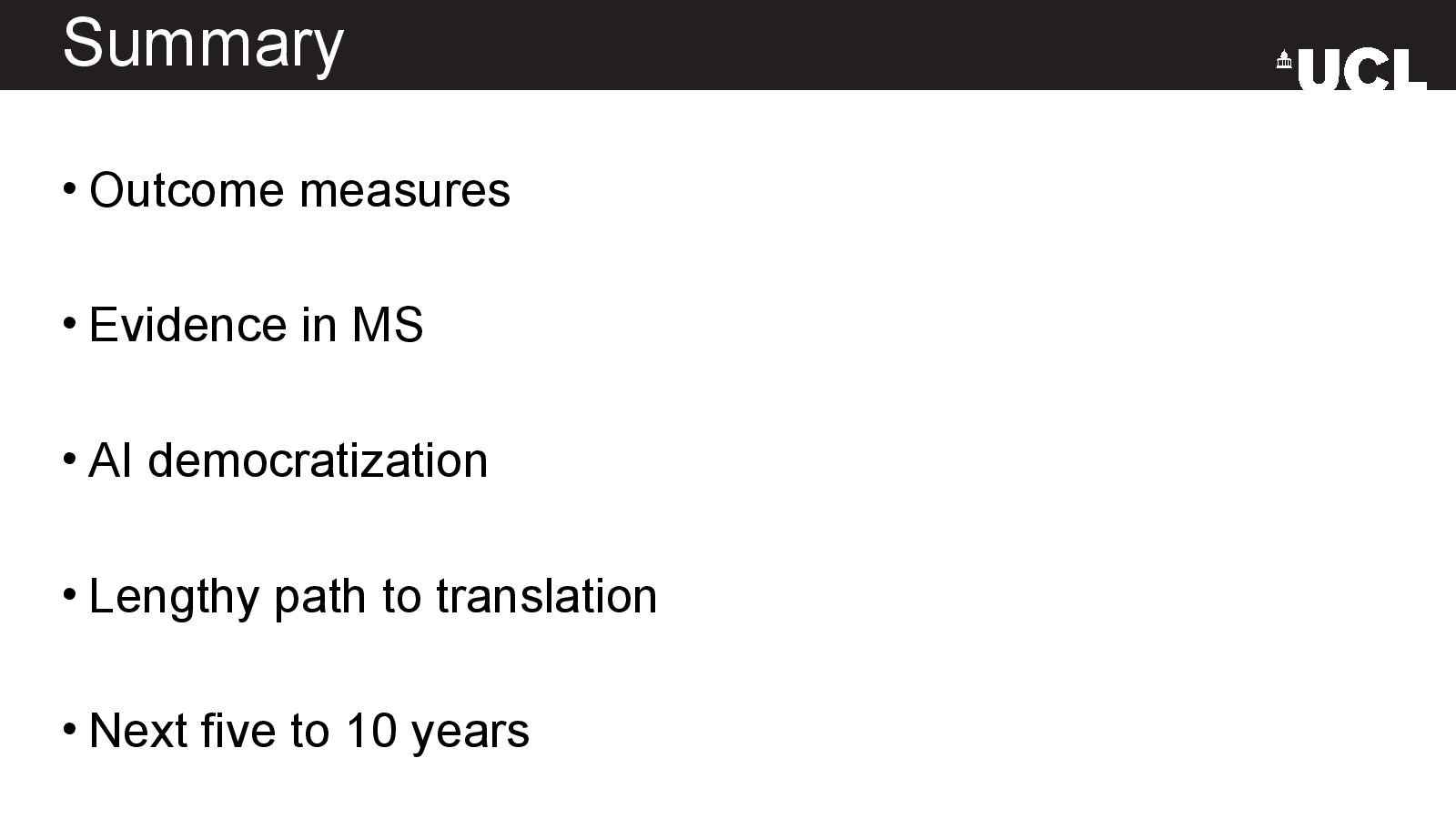

  6. Slide 19

    Summary

    Slide 19: SummaryOpen full-size slide

    Outcome measures

    Evidence in MS

    AI democratization

    Lengthy path to translation

    Next five to 10 years
